| Product code | Dimensions (inches) | Fasteners | Allowable Loads (lbs) 160% | |||||
| W | H | L | Stud | Plate | Uplift | L1 | L2 | |
| IKE 1 | 1 ½” | 5″ | 3 ½” | 6-10d | 4-10d | 787 | 337 | 337 |
| IKE 2 | 1 ½” | 6 5/8″ | 3 ½” | 6-10d | 4-10d | 932 | 451 | 318 |
This table is based on Miami-Dade NOA 16-0201.22 and Florida Approval 16294-R2, Table 19.

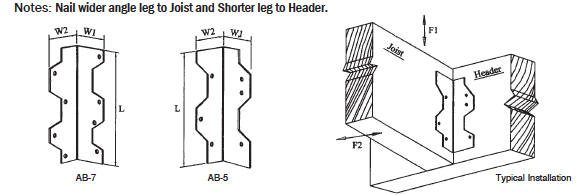

18 Gauge Angle Clips – AB
| Product Code | Dimensions (inches) | Fastener Schedule | Allowable Loads (lbs) 160% | ||||
| W | H | L | Header | Joist | L1 | L2 | |
|
AB5 |
1 ½” | 2 5/16” | 5” | 3-10d x 1 ½” | 3-10d x 1 ½” | 511 | 595 |
|
AB7 |
1 ½” | 2 5/16” | 7” | 4-10d x 1 ½” | 4-10d x 1 ½” | 582 | 794 |
This table is based on Miami-Dade NOA 16-0201.22 and Florida Approval 16294-R2, Table 16.
