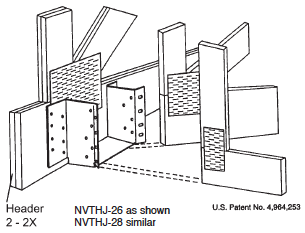

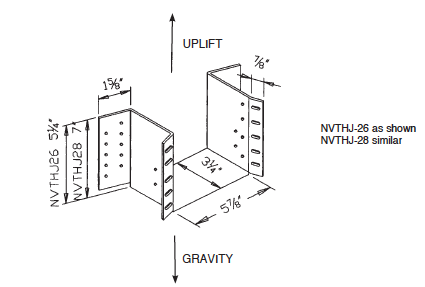

The first hip and jack hanger that works right or left hand. Facemounts to 2×6 or 2×8 girder chord. Easy-nail flanges avoid the plated areas. Impressions in seat to align with panel point for perfect location, or hanger can be installed after corner truss is set. 3-1/4˝ seat bearing.
MATERIAL: 12ga.
FINISH: Galvanized G60
| Product Code | Allowable Loads (lbs) S. Pine | Nail Schedule | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Gravity Loads |
Uplift 160%
|
Header Nails 16d (e) |
Hip Nails 10d
|
Jack Nails 10d
|
|||||||
| 100% | 115% | 125% |
a
|
b
|
total
|
c
|
d
|
total
|
|||
| NVTHJ26 | 2444 | 2444 | 2444 | 1478 | 16 | 4 | 3 | 7 | 2 | 3 | 5 |
| NVTHJ28 | 3229 | 3333 | 3333 | 1931 | 20 | 5 | 4 | 9 | 2 | 3 | 5 |
Note: For 1-2x members 10d x 1 1/2” nails can be used.
This table is based on Miami-Dade NOA 16-0201.22 and Florida Approval 16294-R2, Table 18
